At the Junction of Geography, Geology and City Planning: Nybroviken, Raoul Wallenbergs torg, Berzelli Park, Nybroplan, and Norrmalmstorg

N/P = Norrmalmstorg/Parcktorget, RW = Raoul Wallenbergs torg, NPlan = Nybroplan
In an early blog post, I described how Stockholm’s Earliest Urban Plan called for a series of different street grids that radiated out from the Royal Palace.  The shifting points between the rotated street grids were determined by geography—the street grids on Kungsholmen and Södermalm, both islands, were naturally different than the grids of the mainland.  North of downtown, the plan called for three different grids which are slightly rotated from each other.  The two grids of Norrmalm (orange and yellow) are separated by a high ridge which made a uniform, connected grid difficult.  The shift in grids between Norrmalm and Östermalm (yellow and green) occurs at a low point in the land that was filled with water until the mid-1800’s.  While there is now little trace of the creek, harbor, and swamp that separated Norrmalm and Östermalm, this low-lying area is still a noticeable boundary between two distinct areas in Stockholm.  This blog post covers Nybroviken, Raoul Wallenbergs torg, Berzelli Park, Nybroplan, and Norrmalmstorg, a series of open spaces from the water’s edge into Stockholm’s fashion and business district.

As I described in my first post, Scandinavia’s landmass is slowly rising out of the sea.  Throughout Stockholm’s history, the landmass has become steadily larger and the water’s edge has steadily moved outward.  Harbors have slowly become too shallow and new harbors have had to be built, and what were once islands have grown and joined the mainland.  This slow change in geography has sometimes been hastened by man, as is the case with Nybroviken or “New Bridge Bay.”
Orange = waterline in 1300.  Red = waterline in 1640.  Blue = waterline today.  Green N/P = Norrmalmstorg/Packartorget

In this plan from 1663, a small lake drains both northward into Brunnsviken and southward into Nybroviken.  The lake (called Träsket) and the creek (called Rännilen) running southward were the original boundary between Norrmalm and Östermalm (I have made the lake and creek blue for clarity).

In 1642, the queen decreed that all fishing boats from out in the archipelago would use a harbor at  Packartorget, or “Packing Square,” instead of one of Stockholm’s main harbors where large, international ships docked.  The “packing” referred to barrels which were filled with salt and herring for export.  In addition to fish, the square also became an important market for other local products that were sold to the city’s citizens to meet their daily needs: hay, firewood, and charcoal were especially important goods that came in from surrounding areas on small boats to Packartorget.

Plans were drawn up to build a formal, rectangular harbor with quays at Packartorget’s edge.  A long stretch of the water’s edge was thus to be regularized with a long, straight dock.  When the plans were drawn up, the entire square was still under water, so the project involved filling in wet areas and creating large new areas of solid land.  In addition to wooden docks and quays, archeological digs have found purposefully sunken boats filled with gravel as the first layer for filling in the land.
Proposal from the 1640's. Red = waterline in 1640.  Blue = waterline today.  Green N/P = Norrmalmstorg/Packartorget.  Yellow= Proposed harbor and quayside

In addition to being a harbor and a market, Packartorget also served as one of the city’s places for corporal punishment until 1810.  No executions were performed here, but the public was frequently entertained by other punishments when sinners were tied to the “Shame Pole,” petty criminals were given lashes at the “Punishment Pole,” and carriage taxi drivers who extorted illegally high fares were forced to sit upon the pointy back of the “Wooden Horse” with weights hanging from their feet.  The latter punishment was given at Packartorget because many of the city’s taxi-stables lined the square.

This harbor from the 1640’s and -50’s didn’t last long.  Not only was the land rising and making the harbor shallower and shallower with every passing year, but the bay was also serving as an illegal trash dump.  By 1675, the harbor had already been moved outward.  During the 1700’s, the harbor was moved outward several more times.  This map from 1749 shows that the water’s edge had moved outward and that the bay had shrunk considerably in just 100 years.  Plans for straight streets along the bay’s edge were overlaid onto the actual conditions which were far less organized.
Proposal from 1749. Red = waterline in 1749.  Blue = waterline today.  Green N/P = Norrmalmstorg/Packartorget.  Yellow= Proposed harbor and quayside.
The above proposal also shows a new bridge which was built in 1742.  The older bridge visible on the map from 1663 stretched from Blaiseholmen, at the time a small island separated from the mainland by a narrow channel, to Östermalm.  On the map from 1749, Blaiseholmen is no longer an island but is attached to the mainland, and the bridge has moved farther in the bay from Blaiseholmen up to Norrmalm.  Nybroviken, or “New Bridge Bay,” eventually became the commonly used name for the bay.

There is a long, written record of complaints from the area’s citizens to the city and even to the king about the bay’s condition.  Some complained about how hard the harbor was to use and about lost income.  Others complained about the smell emanating from the bay’s still, swampy water and the piles of trash lining the bay.  Still others complained about the unhealthy effects of the illegal but common practice of dumping out latrines into the bay under the cover of darkness.  The city’s coffers were literally empty so nothing was done to remedy the situation other than one ineffective attempt to dredge the bay.  By 1800, the inner area of the bay near Packartorget became completely unusable and boats began to tie up on the eastern shore instead.  “Packing Square” was no longer used for its original purpose.

A series of plans to regularize the shape of the bay were drawn up through the 1700’s and early 1800’s.  All of these plans failed to address the inherent problem that the inner part of the bay was too shallow and that its water was stagnant.  Instead, the plans focused on beautification of the city with stately quaysides and waterside avenues.  I find it strange that the plans addressed beautification only in terms of looks—the fact that the shallow, inner part of the bay was stagnant and stinky didn’t seem to be on the beautification agenda.  Even less attention was paid to the fact that the inner part of the bay was unusable for shipping.
Proposal from 1787. Red = waterline in 1787.  Blue = waterline today.  Green N/P = Norrmalmstorg/Packartorget.  Yellow= Proposed harbor and quayside.

Despite all of these proposals over the course of a century, work on the project didn’t begin until 1816.  The initial focus was the building of the waterside avenues.  The project involved a number of land transactions because the lots historically extended all the way to the water’s edge—now they would be cut off from the water by the avenues.  Progress was slow but steady.
Proposal from 1816. Red = waterline in 1816.  The waterline today is off the map.  Green N/P = Norrmalmstorg/Packartorget.  Yellow= Proposed harbor and quayside

As I mentioned, the project to line the bay with stately avenues didn’t really address the problem that the innermost part of the bay still stank and was still filled with trash and sewage.  In 1834, a cholera epidemic raged through Stockholm killing at least 4000 people.  Even after the 18th century prophesies of deadly epidemics were fulfilled, the city still wasn’t prepared (in terms of both will and economics) to do something about the problem.

The city didn’t act in order to make the bay healthier for its citizens after the cholera epidemic of 1834, but in 1837, the city decided to replace the worn wooden “New Bridge” with an iron bridge in celebration of the King’s 25th anniversary on the throne.  The King at least had his priorities in order and  insisted that instead of a new bridge, the swampy inner areas of the bay should be filled in and made into a park and that a stone quay should be built at the water’s new edge.  Work on this revised plan began in 1838 but proceeded slowly.  The inner bay was filled in almost immediately but the new stone quay, which was lined by a cast-iron railing, wasn’t opened for traffic until 1848.

The park’s design was drawn up in 1852 by Knut Forsberg and it was opened to the public in 1858, becoming Stockholm’s second public park after Strömparterren.
Drawing for Berzelii Park
A statue of the prominent Swedish chemist Jöns Jacob Berzelius was erected in the center of the park, giving the gardens the name Berzelii Park.  The statue of Berzelius was Sweden’s first public statue of a non-royal subject.  Not only was the park meant to be enjoyed by commoners, but the park even honored the accomplishments of a commoner.  Times were seriously changing.

About every 50 years or so, new sculptures have been added to the park, but the park’s design, plantings, and layout have remained fairly constant.
The park provides a small but important element of green in the city's landscape.
At some point, the cast iron railing along the quay’s edge was moved to enclose Berzelli Park.  The park is a well-defined green space while the surrounding open areas of Nybroviken, Raoul Wallenbergs torg, and Nybroplan are paved with stone pavers and are obviously more “square” than “park.”

Like Strömparterren, Berzelli Park became a prominent part of Stockholm’s entertainment scene.  Berns opened a cafe at the park’s edge which was enormously popular.  In addition to refreshments, the cafe also provided live music.  If one didn’t have money to sit inside, one could picnic on the park’s lawns and hear the concerts for free.  Over the years, the cafe developed and expanded and Berns Salonger is still a popular upscale restaurant and night club.
In the 1920’s, a China-themed movie theater was built next door to Berns.  Berzelli Park’s reputation as Stockholm’s entertainment center became even more entrenched.  Today, the theater holds large shows—often Swedish versions of Broadway hits.

In 1853, a prominent citizen who had property lining Packartorget petitioned the city to change the square’s name.  Not only did the name refer to a function that that the square hadn’t served for at least 50 years, but the name was also negatively associated with criminal activity and corporal punishment.  The city agreed and the name was changed to the current uninspired Norrmalmstorg, or “Norrmalm’s Square.”  Even the street lining the square changed names from Packartorgsgatan to Norrmalmsgatan.

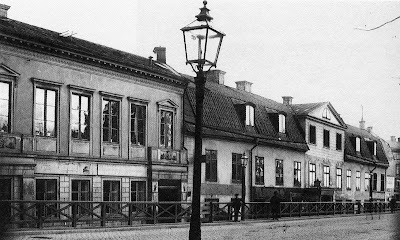

Photograph from 1891 showing the buildings lining Norrmalmstorg before the district became fancy.

When the square was known as Packartorget, it was filled with the activity and stink of the working class—fish and sewage and corporal punishment didn’t exactly add up to a fancy address.  But when the fish and sewage were cleared out, the bay was filled in, and the corporal punishment moved out, Norrmalmstorg was suddenly valuable real estate in the middle of the city.  The low, almost countryside pattern of settlement was replaced by large, showy urban buildings housing banks, fine tailors and dressmakers, and upscale cafes.
Within 50 years, Norrmalmstorg was transformed into a desirable, posh address.  (Only a couple of these turn of the century buildings survived the bulldozers of the mid 20th century, and large mid-century office buildings replaced them.  Even so, Norrmalmstorg continues to be a fancy address for banks and fashion houses.  More about the bulldozers in a much later post.)
Norrmalmstorg

Similarly, the bay also underwent a process of refinement from being known as the stinking, swampy Pakckartorgsviken or “Packing Square Bay” to the refined Nybroviken  or “New Bridge Bay.”
Nybroviken
 Along with the change in name, the new park, the new waterside avenues, and the new swanky quayside, the surrounding activities and buildings also changed.  Historically, the water’s edge was used as an official city trash and sewage dump, but that was obviously now out of place.  Instead, Nybroplan or “New Bridge Square” became the setting for the Royal Theater, the posh Berns Salonger, and stately edifices such as the Hallwylska House.
Nybroplan and Dramaten, the Royal Theater
On the eastern side of the bay, Strandvägen was developed into Stockholm’s Fifth Avenue.  I’ll come back to Strandvägen in a later post.
Strandvägen

Not only was the inner part of the bay filled in, but the creek which served as the boundary between Norrmalm and Östermalm was also filled in.  There were discussions of building a canal, but the canal idea was abandoned in favor of building a Paris-inspired boulevard.  I’ll write more about this boulevard, Birger Jarlsgatan, in a later post, but this prominent street now serves as the boundary between Norrmalm and Östermalm instead of the old creek.

Changing traffic patterns through the last 150 years have also brought physical changes to the area.  Trams have come and gone and come back, cars and parking lots have taken over and then receded.  Pedestrians have always been numerous.  Once numerous steamboats have been replaced by numerous sightseeing boats for tourists, but the quay is also still used for a few of Stockholm’s public ferries (some of which are refurbished steamboats) and for one of the ferry companies serving the archipelago.
One of Stockholm's public transportation ferries is a refurbished steamboat, it stops at Nybroviken.

The narrowing of the quayside roadbed in 2001 created a new public square between the water and Berzelii Park which was named for Raoul Wallenberg, a Swedish diplomat living in Budapest during World War II.  He (obviously with the help of others) managed to save the lives of tens of thousands of Jews in Nazi-occupied Hungary by hiding them in buildings he rented, providing Swedish passports, and smuggling them out of Nazi territory.  Reportedly he was also an intelligence agent working for the CIA.  He disappeared in 1945 and was later reported to have died in 1947 in the hands of the KGB in a Moscow prison, but this has never been confirmed.
Raoul Wallenbergs torg

Nybroviken, Raoul Wallenbergs torg, Berzelii Park, Nybroplan, and Norrmalmstorg are an example of how the interaction between geography, geology, and city planning can transform an area.  First, geography in the form of a sheltered bay provided city planners with a reason to create public spaces—the harbor and square at Packartorgsviken and Packartorget.  The geology of rising land forced the planners to move the harbor again and again; eventually the city was forced to fill in the harbor completely.  This geographical change created additional public spaces—the new quay at Nybroviken, the new squares Raoul Wallenbergstorg and Nybroplan, and the new greenspace Berzelii Park.  Not only were new public spaces created, but the entire area was transformed from a stinking working-class milieu with very little infrastructure to a refined, exclusive environment of grand avenues, quays, and parks.  Despite the transformation, this string of public spaces together with Birger Jarlsgatan still serve as a geographical boundary between two distinct areas of the city.

Sources:
Bengt Järbe, Dofternas torg: Hur Packartorget blev Norrmalmstorg  (1995)
Alla Tiders Stockholm (2014)

Images:
The photographs are mine except for the interior of Berns which came from http://neumeister.se/work/berns/.
All of the historical drawings, maps, photographs, and artwork came from Bengt Järbe, Dofternas torg: Hur Packartorget blev Norrmalmstorg  (1995).  I have added the overlaid colors.  One exception is Berzelii Park’s original drawing which came from Wikipedia and the map from 1663 which came from Stockholmskartor by Nils-Erik Landell (2000).

Tuesday, August 8, 2017

Stockholm’s First Public Park: Strömparterren

I have previously written about several parks: the urban Kungsträdgården, the English Romantic Haga Park, the canal promenade at Djurgården, Gärdet’s extensive heath,  and Långholmen’s island park, but none of these were created for public use, and today’s use for public recreation is only a bi-product of changing times.  Kungsträdgården was originally the royal kitchen garden and later a royal pleasure park, Haga Park was King Gustav III’s private pleasure park, Djurgården was a royal hunting ground and later King Karl XIV Johan’s pleasure park, Gärdet was a military exercise and parade field, and Långholmen was a prison.  Strömparterren was Stockholm’s first park created expressly for the public, with public funds.

As far as I can tell, the park at Strömparterren marks an important turning point in the development of Stockholm as a city.  Previously, public funds had been used to develop the city to make it safer (street lighting), or more sanitary (draining swamps), or better for business (quays, locks).  Public funds had been used to create a grander city fit for a monarch and to impress foreign visitors.  But until Strömparterren, public funds hadn't been earmarked to make the city a better place for its own ordinary, non-royal, non-noble residents.  It certainly didn't hurt that the palace overlooks the park and that the creation of the park meant a better view for the royals, but the park wasn't meant to be used by the royals.  It was meant to be used by ordinary citizens.

The name Strömparterren translates roughly to “The Lower Level Current” and refers to the fact that the park is about two stories below street level at the location where the slightly higher Lake Mälaren (map 2) tumbles out into the Baltic Sea (map 3).  In the spring, the water surges over the small rapid and kayakers play in the white water.  This meeting point between Sweden’s two historically most important navigable bodies of water is the reason that Stockholm began to develop in the 1100’s (see my first blog post).

This small island between the mainland at Norrmalm and the island of Gamla Stan is generally referred to Helgeandsholmen, but it was actually originally three even smaller islands, each with its own name.  These diagrams from 1888 (before the parliament buildings were built) show how much more water (green) there originally was between the mainland and Gamla Stan and how the land was successively expanded over time (I have added the red outline to emphasize the 1888 landmass for comparison.)  The name Helgeandsholmen means “Holy Spirit Island” and refers to the monk-operated poor house and hospital which was in operation from the 1200’s until the Reformation in the 1500’s.  When King Gustav Vasa seized all church property during the Reformation, the monks were kicked off of this valuable real estate and the Royal Stable was moved here instead.
1527, 1680, 1773, 1888 (1)

In addition to the Royal Stables, Helgeandsholmen has been home to many other various uses over time including the luxurious homes of several important figures at court, a tannery, a cannon making factory, a treasury, and always a fishing harbor (map 4).  Even today, there is usually someone fishing in the rich rapids between the lake and the sea.
Ironically, several historic fishing boats are tied up to the quay at Strömparterren--a refined taste of the once chaotic and smelly fishing harbor.

The fishing harbor was a very lowly counterpoint to the Royal Palace (map 4) which was right next door.  Additionally, it became popular to stroll through Kungsträdgården (map 5), past Gustav Adolfs Torg (map 6), across Norrbro bridge, and to the Palace.  The smelly, chaotic fishing harbor was not in keeping with the surrounding stately spaces and buildings.  An accident involving a fishing boat that hindered commercial boat traffic was the last straw and in 1821, the King decided that the fishing harbor was to be removed.  To my knowledge, the removal of the fishing harbor and the development of the park at Strömparterren (map 1) is Stockholm’s first explicit example of “Urban Renewal” and “Gentrification.”  The lowly, disorganized harbor was replaced by an orderly, geometric park with plantings and trees where upstanding citizens could recreate and even spend a bit of money.  The park opened in 1832.

Almost from the beginning, a cafe was built under the bridge.  A music pavilion was built in the 1880’s and the park was a popular destination until the 1920’s when its popularity waned.
The cafe (2) and music pavilion (3)
Since the 20’s, Strömparterren has been a bit off the beaten path.  Today, a few tourists stroll through the park on their way to the Medieval Museum (which replaced the cafe under the bridge), but locals today have very little reason to use the park—it’s not in a residential area, or an area with a lot of offices, or on the way to anything that would be part of a local’s daily life.  The park’s location two stories below street level makes it even less likely to be well used—the level difference means that one doesn’t just spontaneously perch on a bench while walking by.

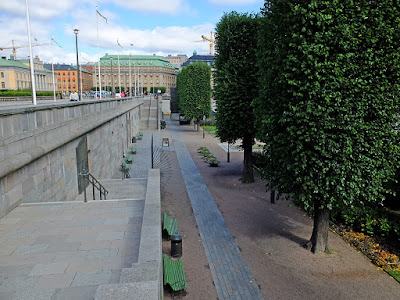

Street level to the left, park level to the right.

After the park fell out of popularity, it became run down.  It was renovated in the 30’s and has been renovated about every 20 years since, sometimes with a new sculpture or a new layout of flowerbeds.
Carl Mille's sculpture Solfångaren was erected in 1926, a drawing from 1924 showing plans for the park's first large restoration (4).
Even though it isn’t well used, its prominent location ensures its upkeep.  The mature trees provide an important counterpoint of green in the dense landscape of downtown.

It’s a shame that the park is so often overlooked.  The large trees and the plantings are quite pretty, and the ambiance is calm and relaxed.  The location jutting out into the water is beautiful, and the atmosphere of history is practically tangible in the park, surrounded as it is by the Royal Palace, Parliament (map 7), and the Opera House (map 8).
The Royal Palace on the left and Parliament on the right.
It’s a small and somewhat intimate park, but despite its size, it is quite varied without feeling crowded—fountains, statuary, a reflecting pool, grass lawns, dense plantings, mature trees, waterside paths, a cafe, and views out over the city.  Strömparterren is a park that we Stockholmers should make better use of.

Sources:
Klas Lundkvist, Norrbro och Strömparterren (2006)
Alla Tiders Stockholm (2014)
All images are my own except for:
(1) Klas Lundkvist, Norrbro och Strömparterren (2006)
(2) http://www.wikiwand.com/sv/Str%C3%B6mparterren
(3) https://digitaltmuseum.se/011014490655/notering-pa-kortet-stockholm-stromparterren?i=12&aq=text%3A%22str%C3%B6mparterren%22
(4) https://digitaltmuseum.se/011024570995/ritning?search_context=1&count=10&pos=5&technique=Kopia
